Are you looking for additional heating safety? Then you may be interested in our new product – KEPO PELECTRO

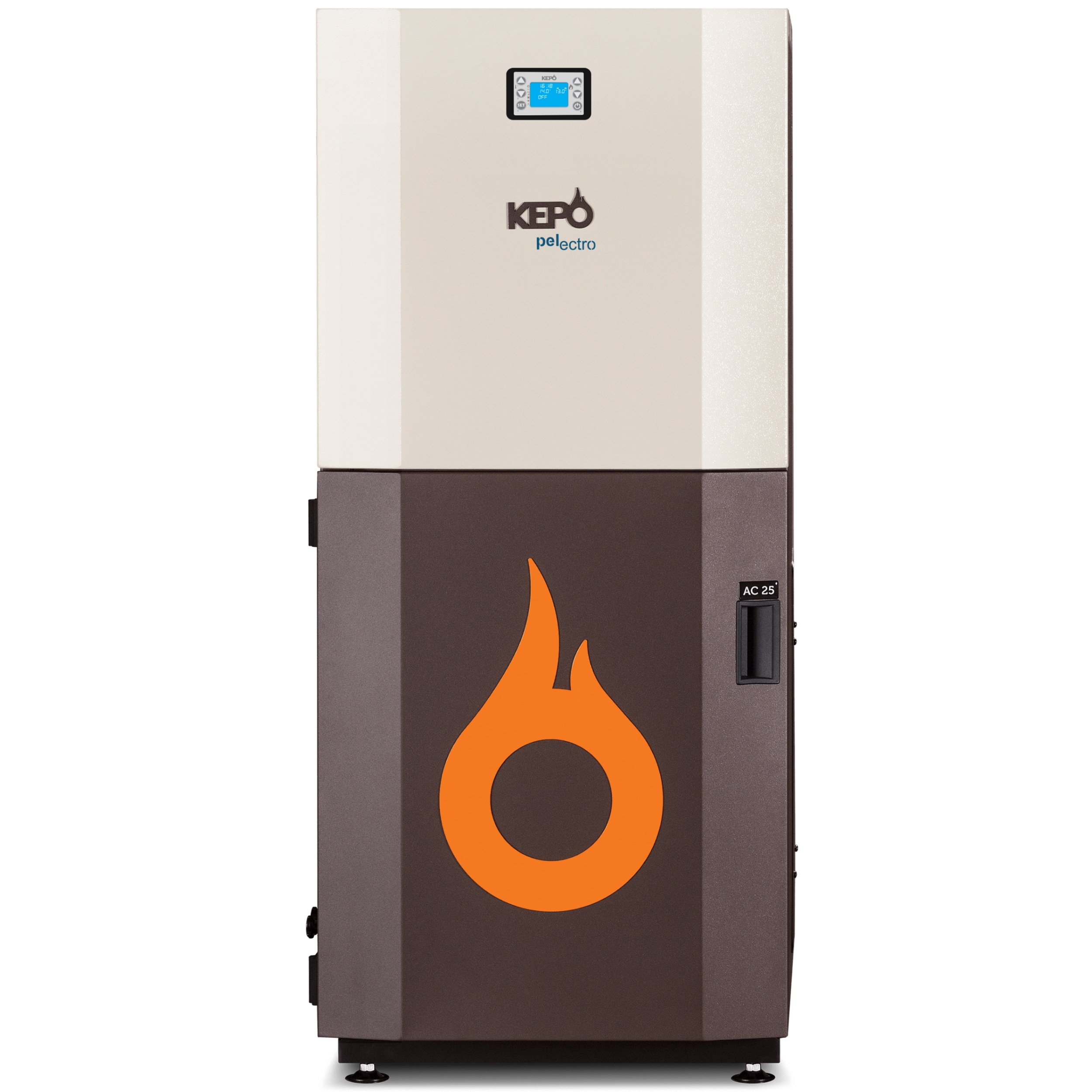

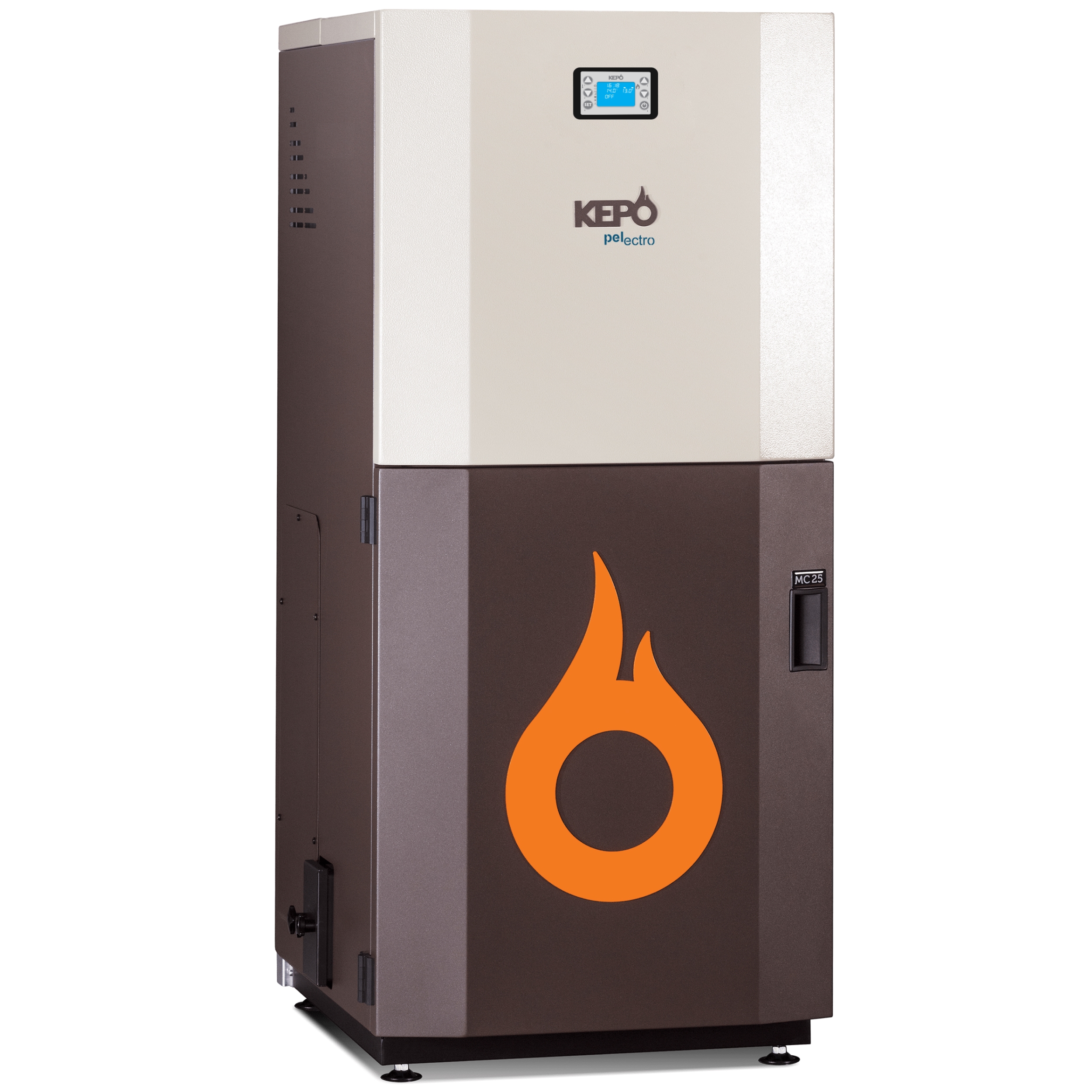

KEPO PELECTRO is an innovation both on the domestic and European market. It is a combined pellet and electricity boiler with integrated electric heaters that can be used alternately with pellets.
The retained standard boiler dimensions make for useful space-saving and convenience in installation and use.
KEPO PELECTRO has the option of daily and weekly boiler programming, which allows automatic switching from pellets to electricity and vice versa.
In addition to all the features it shares with KEPO COMFORT, the basic advantages of KEPO PELECTRO models are:
- safety in the event of pellet burner stoppage for any reason, because you can always continue heating until the arrival of your service technician
- if for some reason you do not have pellets at your disposal in the coming days, you can use electricity to keep your quarters warm and be carefree
- switching the boiler operation to electricity during off-peak hours
ENERGREEN MODEL SERIES AND POWER
KEPO offers three power ratings of PELECTRO
Models: 15 kW, 20 kW and 25 kW
With the choice of when and in what situation you will use wood pellets and when electricity, KEPO PELECTRO, which is available in the AC series, offers you additional security that you will never run out of heating.
AUTOMATIC CLEANING SERIES (AC)
A boiler series with automatic cleaning of the burner and heat exchanger that ensures reliable operation even with pellets of poorer quality and saves your time when it comes to the regular burner and heat exchanger maintenance, thus providing a higher level of user comfort.KEPO PELECTRO MODEL
| TECHNICAL SPECIFICATIONS | Measurement unit | AC 15 | AC 20 | AC 25 |
|---|---|---|---|---|
| Weight | kg | 215 | 258 | 283 |
| Height | mm | 1155 | 1280 | 1430 |
| Width | mm | 600 | 665 | 665 |
| Depth | mm | 790 | 830 | 830 |
| Flue pipe diameter | mm | 80 | 80 | 100 |
| Draft | mbar | 0,10 | 0,10 | 0,10 |
| Pellet tank capacity | kg | 40 | 62 | 75 |
| Electricity consumption at start - pellets/electricity | W | 464/12000 | 390/18000 | 503/18000 |
| Electricity consumption during operation - pellets/electricity | W | 70/12000 | 110/18000 | 114/18000 |
| Standby power consumption | W | 4 | 4 | 4 |
| Nominal voltage | Vac | 3x400 | 3x400 | 3x400 |
| Nominal frequency | Hz | 50 | 50 | 50 |
| Water pipe diameter | ” | 1 | 1 | 1 |
| Safety valve pipe diameter | ” | 1/2 | 1/2 | 1/2 |
| Pump flow rate | l/h | 1300 | 1300 | 1300 |
| Expansion dish | l | 5 | 8 | 8 |
| Exhaust gas temperature in nominal mode | °C | 144,80 | 119 | 118,60 |
| Exhaust gas temperature in minimum operating mode | °C | 78,20 | 63 | 68,50 |
| Amount of water in the boiler | l | 42 | 53 | 72 |
| Boiler power (pellet) | kW | min 4,50 – max 14,80 | min 5,79 – max 18,50 | min 6,00 – max 23,70 |
| Boiler power (electricity) | kW | min 6 – max 12 | min 9 – max 18 | min 9 – max 18 |
| Pellet consumption | kg/h | min 1,05 – max 3,52 | min 1,37 – max 4,56 | min 1,41 – max 5,47 |
| Energy utilization | % | min 88,40 – nominal 89,20 | min 88,45 – nominal 91,52 | min 89,60 – nominal 91,60 |
| Water temperature setting range | °C | min 60 – max 80 | min 60 – max 80 | min 60 – max 80 |
| Minimum return water temperature | °C | 50 | 50 | 50 |
| Boiler water pressure | bar | min 0,60 – max 2,50 | min 0,60 – max 2,50 | min 0,60 – max 2,50 |
| Recommended pellet class | EN303-5 EN plus | C1 – A1 | C1 – A1 | C1 – A1 |
| Boiler class | – | 5 | 5 | 5 |
| Boiler energy efficiency | – | A+ | A+ | A+ |
| Heating surface | m² | 50 - 100 | 100 - 160 | 130 - 220 |
NOTE – The table shows the recommended boiler power according to the heating surface. Factors influencing the determination of boiler power are the average outdoor temperature during winter, building insulation, temperature that is set inside the building, calculation related to the central heating system inside the building. All buildings and all user needs are unique and based on that, your designated expert is obliged to calculate energy losses, assess existing installations and determine the boiler power adequate for your quarters based on that.
Boiler dimensions and connectors
Kepo PELECTRO 15
Kepo PELECTRO 20
Kepo PELECTRO 25
DOCUMENTS
Kepo PELECTRO 15
Kepo PELECTRO 20
Kepo PELECTRO 25
Additional PELECTRO documents
LCD TOUCH-SCREEN FOR PRACTICAL BOILER OPERATION
The new Tiemme software with a “4.3 touch-screen” is characterized by a beautiful design, visibility and practicality in handling, and in addition to menus in foreign languages, the software also has a menu in Serbian.
The display shows the current values of the boiler clearly, and you can adjust them to your needs with only a few clicks.
REMOTE BOILER CONTROL VIA WIFI CONNECTION
The WiFi module is used for the wireless communication between the user and the boiler, via the Android application and WiFi connection. It is only necessary for the user to have a WiFi router in their living quarters and an Android mobile phone.
BIG TANK
As one of the options, we offer the installation of an additional high-capacity pellet tank (225 kg).
